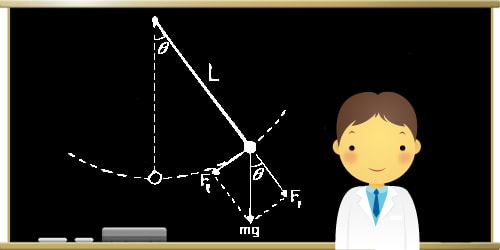

The Pendulum Experiment is an experiment about gravity. Pendulums (or pendula if we are being exact!) are a fascinating scientific phenomenon.
For many years they have been used for keeping time. If you pull back a pendulum and then let it go, the time it takes to swing over and then return back to its starting position is one period.
They follow some simple mathematical rules and we are going to find out how they work.
We are going to do a series of three experiments to see what effect changing things has on a pendulum.
Please note that this experiment is probably easier with more than one person.
Pendulums have been around for thousands of years. The ancient Chinese used the pendulum principle to try and help predict earthquakes.
Galileo Galilei was the first European to really study pendulums and he discovered that their regularity could be used for keeping time, leading to the first clocks
In 1656, the Dutch inventor and mathematician, Huygens, was the first man to successfully build an accurate clock.
A long piece of string, at least 1 meter long.
One piece of metal wire to bend into a hook.
Some nuts from a toolbox - they must all be the same weight and must fit onto the hook.
A large piece of paper to put behind the pendulum or a wall that nobody minds you drawing on.
To do this experiment requires a little building work but nothing too complicated.
The pencil should be firmly taped to the top of the tabled, leaving about 4cm hanging over the edge.
Next make a loop in your string to fit on the end of the pencil but do not make it too tight fitting.
At the other end of your string tie your hook and slide one of the nuts onto the hook.
Put your piece of card flat behind the pendulum and you are ready to go.
Before performing the pendulum experiment, make sure that everything swings freely without sticking.
In this experiment we are going to find out what effect changing the mass on the end of the string makes
Take your string back about 40 - 50 cm. You must make a mark on the wall or your piece of paper to make sure that you let it go from the same place every time.
As you let it go, start the stop-watch, and count the number of oscillations in one minute
Repeat the experiment 5 times and calculate an average
Put another weight on the hook
Release the weight from exactly the same place. Calculate the period as before.
Repeat 5 times and average the results
Try the same procedure with after adding another weight
You may be surprised by your results!
Go back to just one weight on the string
You have the results from the first mark in your last experiment so you can use these results again.
Now, take the string back only about 20cm and make a mark as before
Let go and count the number of periods for one minute
Repeat 5 times and then work out an average
Try exactly the same thing but now let go from 10cm.
What difference does the angle of swing make?
You already have your results from the first experiment and can use these again.
Take the string of the pendulum and cut off about 20cm. If you are really organized, you can use another length of string from the same roll to make a shorter one.
Take back to the same angle and let it fly.
Take another 20cm off the string, replace and try again.
What effect does changing the length of the string have on a pendulum?
As you can see from your results, changing a few things on a pendulum can have some unexpected effects.
There are still more questions about pendulums. What makes them slow down and stop? How does a pendulum in a grandfather clock keep swinging for a long time?
Maybe your next experiment could answer some of these questions.
